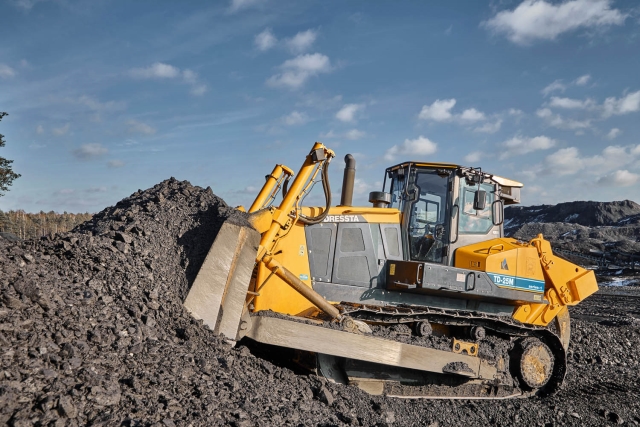

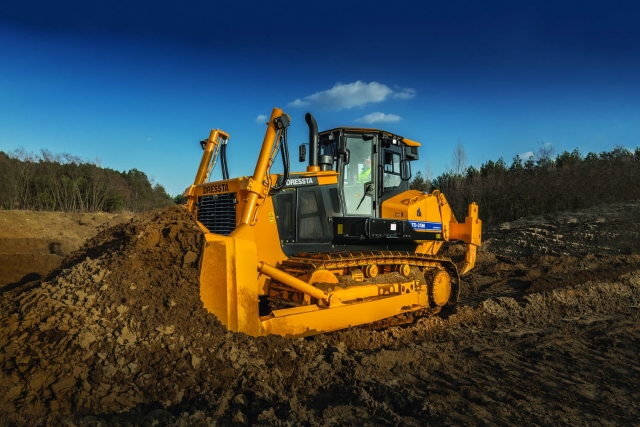

TD-25M Crawler Dozer

The best all-round performer, just got better. When it comes to operational performance, nothing stands in the way of the New TD-25M. In the mine, in the quarry, on the road site or in any heavy weight application, the superior pushing power and control of the New TD-25M sets this dozer apart.

Max Engine Power 280KW

Weight41.5 t

More Specs

Sales Enquiry Parts

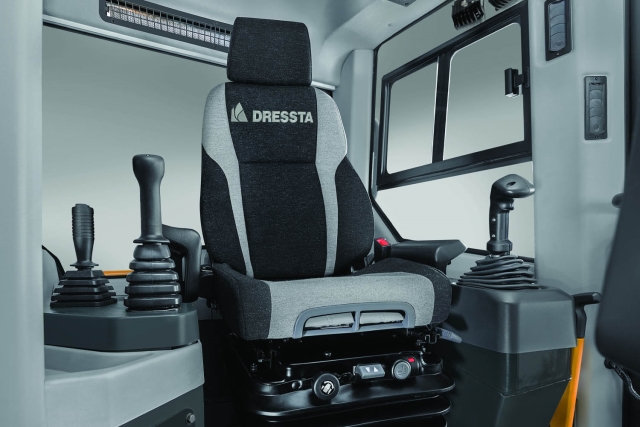

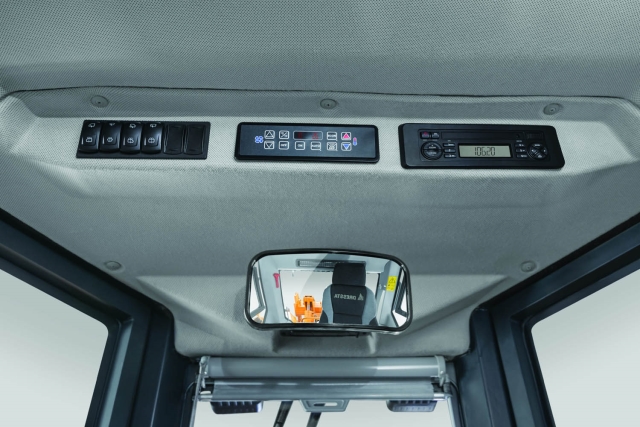

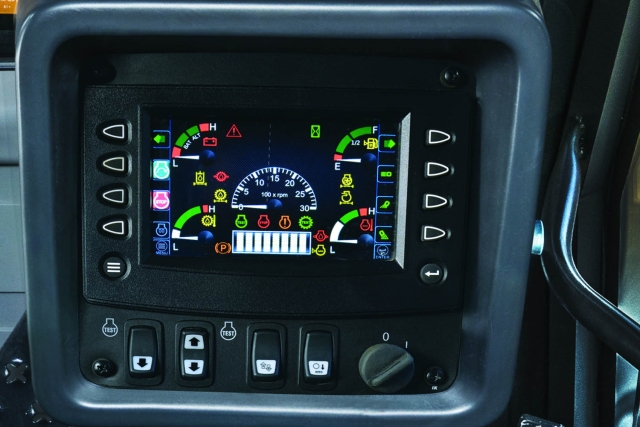

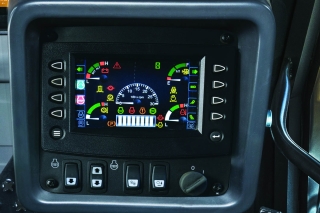

We built our cab around your comfort with improved visibility, a new deluxe seat with heated option, advanced climate control, new high efficiency shock absorbers to reduce noise and vibration and for safety, integrated ROPS & FOPS. But we’ve gone further to create a more productive environment too. We’ve radically improved the operator’s interface, with new ergonomic joysticks for precise control, high visibility LCD in-cab display and Bluetooth, USB device connectivity.


At the heart of this awesome dozer beats a turbocharged Cummins X15, 280 kW (375hp) engine, compliant to EPA Tier 4 final/EU Stage V emissions regulations. Also available as EPA Tier 3/EU Stage IIIA with Cummins QSX15 engine. The combination of Cummins expertise with the latest

heavy-duty diesel design delivers higher peak torque and exceptional fuel efficiency, giving you the confidence to take on the toughest jobs without breaking a sweat.

Total Motion Control

With travel speed pre-selection and automatic down shifting mode, we’ve made it even easier for you to move more material with greater efficiency.


With improved blade control for increased productivity, the Ripper Auto Rise function works to shorten cycle times thanks to the efficient load sensing system.

Your Choice of Weapon

Whatever you need, whenever you need it, we offer you an awesome arsenal of blades including a Semi-U blade, Full-U blade, Coal blade and Angle blade. Our blades have been designed to match the needs of two polar extremes - fine, light dozing and aggressive heavy material movement. The result is arguably the most versatile and high-performance blade range in the industry.


With 790 kN of drawbar pull, you’ve got all the pulling power you’ll need, delivered through the perfect combination of a 3-speed power shift transmission and 2-speed steering drive.

Rip it deep

For breaking rock, concrete, hard packed or frozen soil you need the tough, concentrated and penetrating force that our single-shank rippers deliver. Our standard shank penetrates to 1,250mm but for a deeper cut, choose the deep shank option.

With 1,700mm penetration and fully utilising the 790 kN of drawbar pull force, our rippers have the power to rip through the toughest jobs with speed and efficiency.


We have the right tracks for every application. Our single grouser track shoes available in 560/610/660/711mm are perfect for standard or heavy duty applications. In addition, we offer self-cleaning tracks for landfill applications.


Engine Range 246 kW - 280 kW
Weight Range 41.2 t - 41.5 t
Blade Capacity Range 9.6 - 21 m3
Ground Pressure 102 kPa
