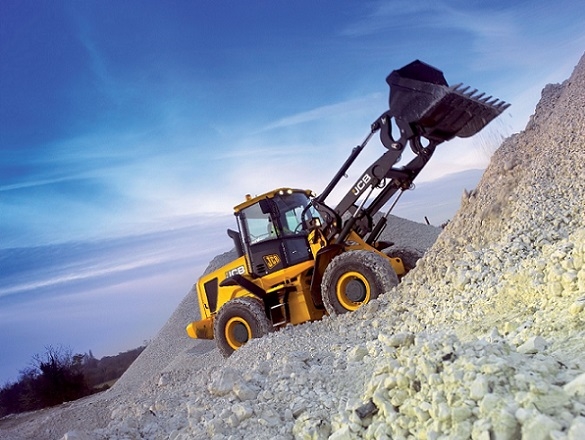

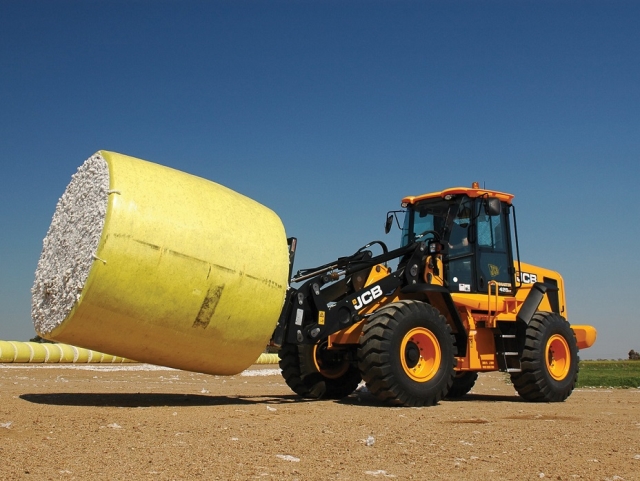

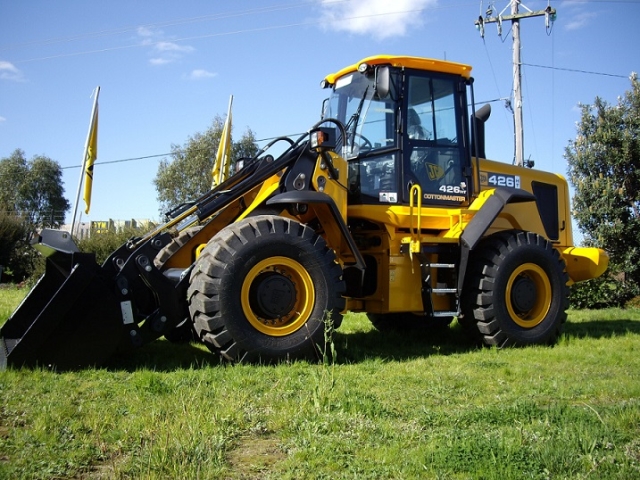

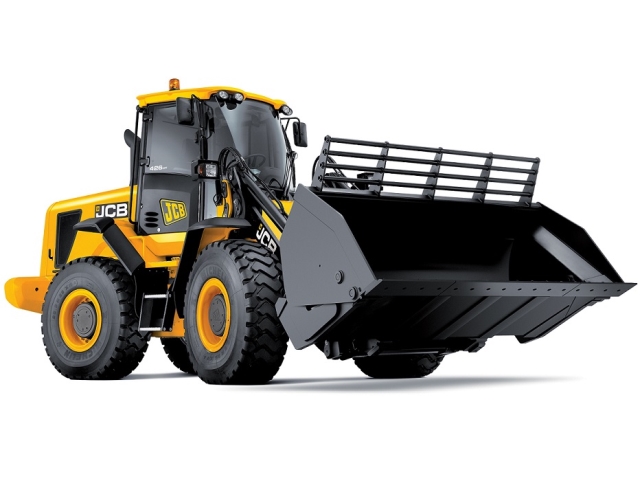

426 HT Wheel Loader

There are many reasons to choose the JCB 426 HT wheel loader. It's productive, efficient, easy to maintain and extremely durable. Its 5.9 litre 6-cylinder Cummins engine is Stage 2 compliant and produces 112 kW and 633 Nm.

Max Engine Power 113KW

Bucket Capacity2.1m3

Max. Operating Weight12740kg

Sales Enquiry Parts


Of course all JCB front-end loaders are designed to get the most from every drop of fuel. On the 426, there's a load sensing hydraulic system with a variable displacement pump, and a variable speed cooling fan, all of which consume power only when required.  There's also premium componentry, like a Cummins Engine and an all-ZF driveline.


Central to the 426 wheel loaders's well-thought-out design is the person who will be controlling it. With operators working for up to 12 hours a day, they need to be constantly alert and comfortable so they can be productive. The 426's cab is a remarkable achievement, combining a stylish interior with highly practical features.


With a wide door, steps inclined to 10° (something that's fast becoming a quarry standard), non-slip surfaces and well-positioned handles, access is always easy and safe, helping to minimise accidents on site.


At 3m³, the 426 wheel loader has one seriously large operating environment, with every detail ergonomically designed for comfort and ease of use. There's also plenty of room for storage, including a massive open-floor space.

The cab is fully sealed in order to reduce dust and dirt entering the cabin, maintaining a healthy working environment. To suit different environments, a range of fresh air intake filters (P3, carbon and standard) is also available; all are easy to remove for cleaning and replacement.


Today's worksites are busier than ever, so safety is always a primary concern. At JCB, we're committed to doing everything we can to reduce the risk of accidents and so we have designed the 426 to give operators the best possible visibility all around the machine.

The 360° tinted glass cab allows the operator not only to spot almost all potential hazards, but also to view the load throughout its full lift range. The cab features narrow uprights between the glass panels, an extra large wiper and a choice of front and rear blinds to keep the sun off.


All the 426 controls are conveniently placed and incredibly easy to use. There's a choice of single or multi-lever controllers “ both allowing for consistent use with minimum fatigue. The singlelever controller incorporates a forward/reverse switch that can be used without taking your hands off the steering wheel, while the multi-lever version is a switch located to the side. Both controllers feature gear-change and disconnect switches, and the latter speeds things up by transferring engine power to the hydraulics.


In a competitive world, you need to move the maximum amount of material at the lowest possible cost. Designed to deliver outstanding power and optimum efficiency, every component on the JCB 426 wheel loader has been created to meet rigorous demands day in, day out.


Once in use, the 426 wheel loader rapidly becomes a vital part of the production process, so any downtime could mean a serious loss in productivity and, therefore, profitability. Keeping it in prime condition is vital, so we have made regular maintenance extremely easy to carry out, which in turn will maximise the machine's use and longevity.

Daily and weekly maintenance checks can be completed easily and safely by operators, thanks to ground-level checkpoints.
