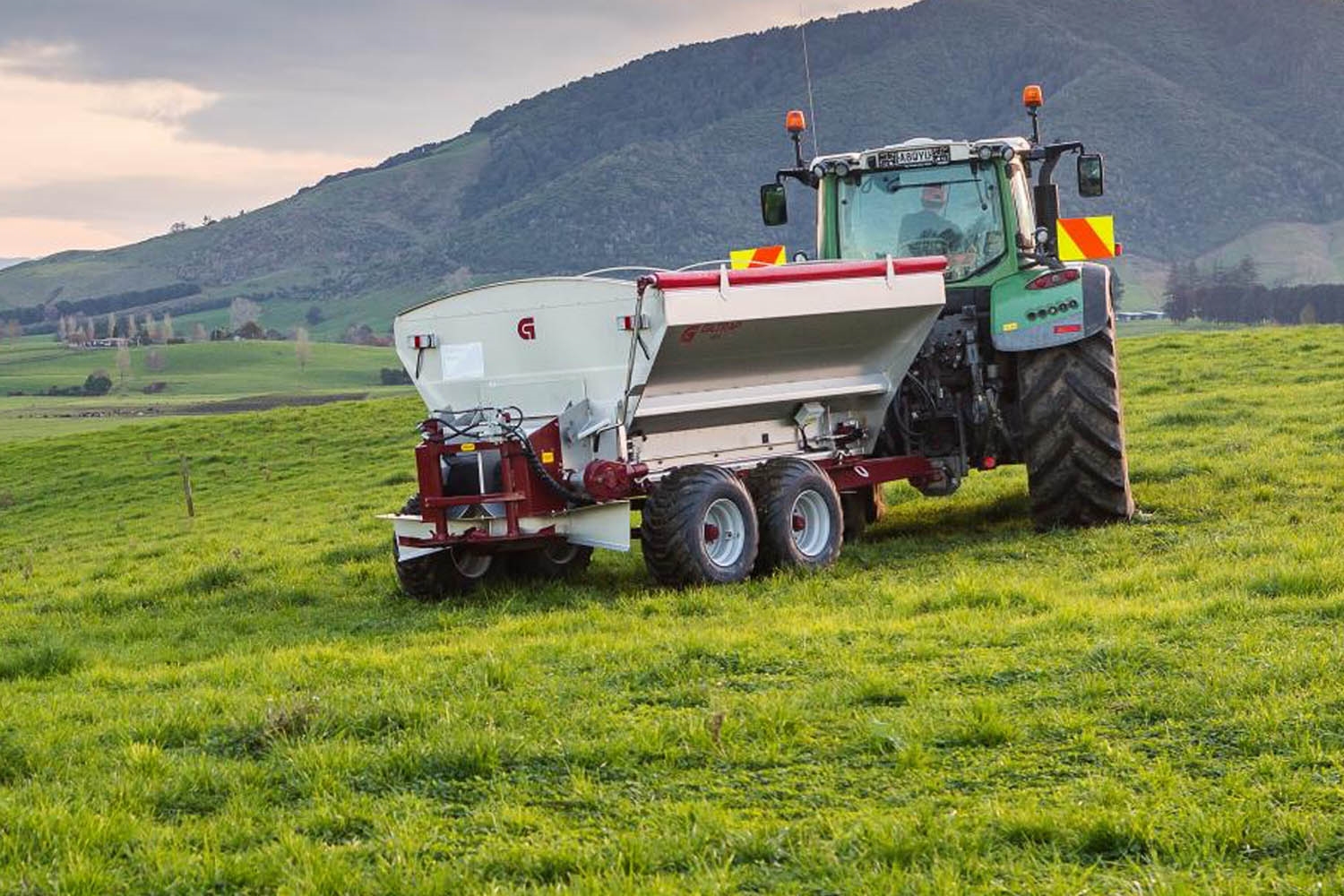

It’s the small details that ensure our fertiliser spreaders are world-class. With top-of-the-line touchscreen control, precision spreading rates, spinner speeds and border spreading at your fingertips, you’ll nail every job.
Spreaders are available from small to 10 tonne capacity. The distributor is controlled from the cab, so all you need to know is the fertiliser density, spreading width & application rate - the computer does the rest. You'll save nutrients, & time.
If an accurate spread pattern with precision rate control is important to you, then Giltrap spreaders are what you are looking for. All Giltrap machines are fitted standard, with hydraulic belt drive electronically controlled from the tractor cab, with consistent and repeatable spread settings.
All you need to know is the fertiliser density, your spreading width and the desired application rate - the computer does the rest so you can focus on driving.
3mm Grade 304 stainless steel bin provides years of corrosion free use
Stainless steel fertiliser deflectors behind the spinners
Independant chassis constructed from grade 350 RHS steel provides a rigid mounting and towing base for the fert bin
Low centre of gravity for safety around hills
Swivel towing hitch
Adjustable quick lift jack stand
Bolt-on axle assembly for simple removal and servicing
Greasable axle pivots on tandem axles
Easily adjustable door with 3 spreading positions for different application rates and products
850mm wide x 8mm thick vulcanised endless rubber belt with 5mm high chevron cleats moves fertiliser efficiently through the door.
No high maintenance drag chains and slats
Belt drive and idler cage rollers are hot dipped galvanised
Drive roller is crowned for reliable belt tracking
Heavy pinch roller increases the wrap of the belt around the drive roller for positive belt grip
Stainless steel adjusters for belt positioning and tracking
60mm diameter idler rollers support the belt at 120mm centres along the length
No ground or wheel drive. Giltrap only use a fully hydraulic drive system, measuring ground speed electronically for spreading rate control adjustment via the computer
Twin spinners operating up to 1000rpm with adjustable speed
Spinner speed digital display on the DICKEY-john® computer
Fully enclosed spinner shaft drivelines
