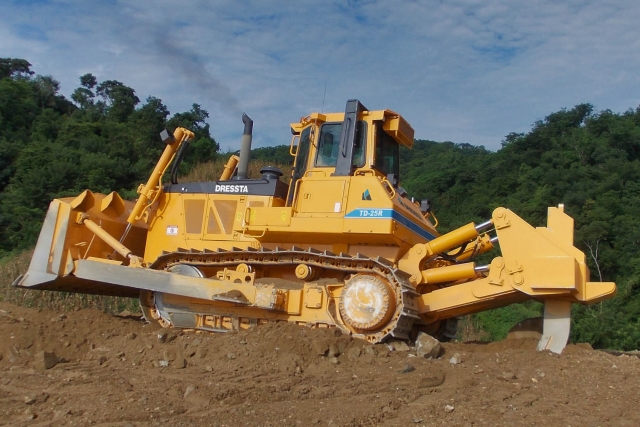

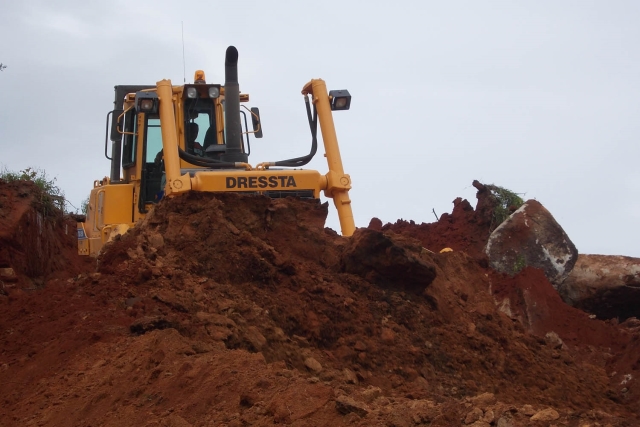

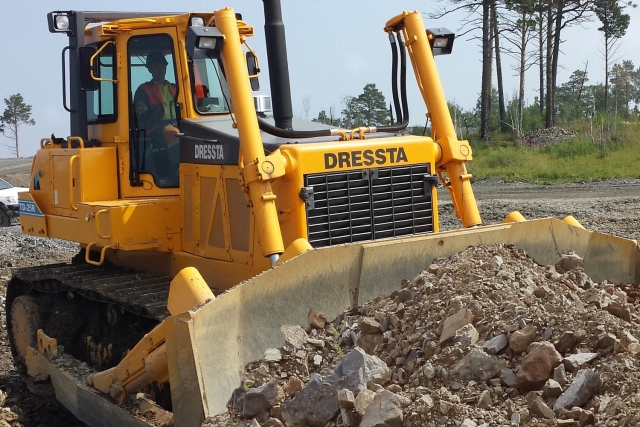

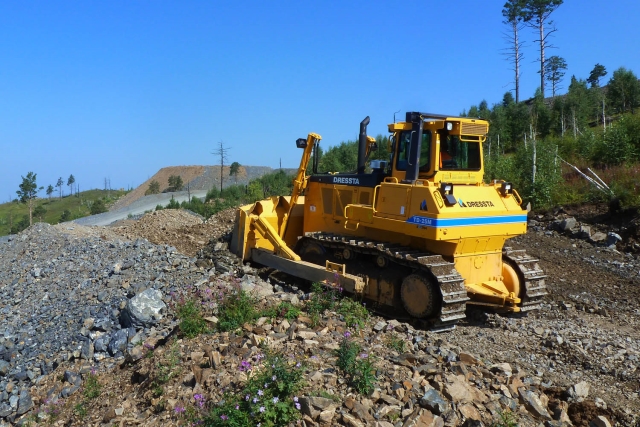

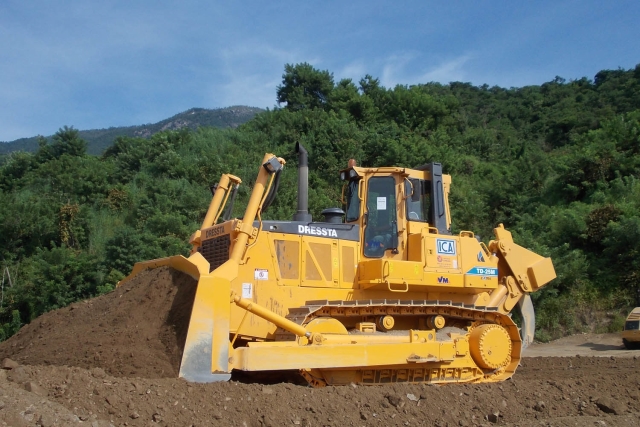

The Dressta TD-25 is the first of the heavy-duty crawler dozer range, starting with a net flywheel power of 375 hp (280 kW) and an operating weight of 41.5t. The machines are built to excel in heavy mining, coal and construction projects, incorporating advanced technologies and components for optimal performance.
The TD-25 Series machines can be specified in Standard (STD), XP and Landfill Application (LA) versions, but can be further modified to meet specific customer requirements through Dressta's Special Feature Requests (SFRs) initiative.
Maximised Traction & Drawbar Pull
The TD-25 is powered by Cummins QSX 15 Engine that delivers steady torque and power for efficient dozing and ripping performance.
Robust powershift transmission combined with the unique 2-Speed Steering Drive transfers 100% engine power to both tracks for better load retention in turns and provides the best in the class Drawbar Pull, up to 20% more than competitors.
TD-25 is offered with a heavy duty rigid undercarriage with lubricated track chain and split master link. It is fitted with variety of track shoes ranging from 22” up to 30” width.
Multiple choice of blades; Semi-U 9.6m3 (Standard), Full-U 11,5 m3, Coal 21m3 and Angle 5.7m3 meet wide range of requirements for applications varying from though rocky quarries, to road & highway, conduction, landscaping and municipality works.
It is offered with 2 optional Parallelogram RipperS, multishank and single shank with unrivalled penetration up to 1,7 meter (deep dig option).
Intelligent Systems
TD-25 is fitted with Electro Hydraulics, enabling intelligence systems to be fitted with ease. Systems such as Trimble / Leica / Topcon will be compatible and can be pre-installed. Plug & Play ready for GPS fleet management systems. Automatic transmission down shifting. Transmission gears preselection.
Easy Maintenance
Easy, ground level access to the Test Bar, sight gauges of al fluids, and greasing points ensuring increased uptime. Modular component layout to make servicing and maintenance quicker, easier and cheaper. High capacity fuel tank will make the operation possible through full 2 working shifts.
Engine 280 kW
Weight 41.2 t
Blade Capacity Range 5.7 - 21 m3
