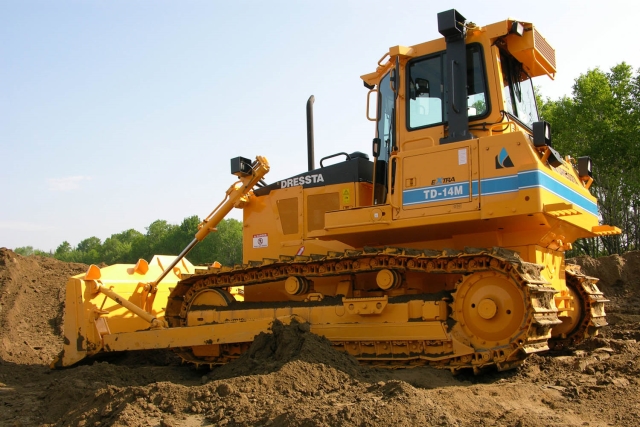

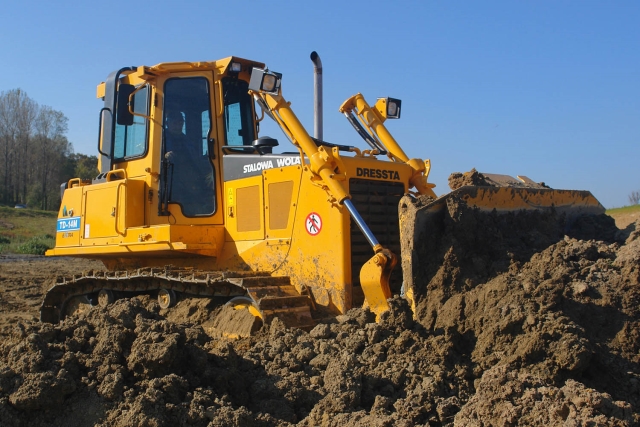

The Dressta TD-14 Series mid-sized dozers feature predictable control with outstanding pushing power. The Standard (STD) TD-14 model is available with 160hp and an operating weight of 16.1t, and is also available in Long Track (LT) and Low Ground Pressure (LGP) versions.
Customers have the choice to modify their machine to meet specific requirements through Special Features Requests (SFRs).
Engine
Heavy Duty Cummins QSB 6.7 litre Tier 3/EU Stage IIIA Diesel Engine.
Direct injection, in-line, 6 cylinder, 4 stroke, turbocharged & Charge Air Cooled (CAC) engine developing 120 kW (160 hp) Net at rated engine speed of 1800 rpm.
Transmission
Transmission system that automatically matches speed to load conditions for optimal push power, preventing driveline shock, multiplying the torque required while delivering 6 forward and 6 reverse speeds.
Torque Converter
3-Speed Powershift Transmission
2-Speed Steering Drive
Double reduction Final Drive
The modular design drivetrain incorporates the engine, torque converter, transmission, steering drive and final drives. Components can be easily removed & re-fitted without oil loss ensuring maximum machine uptime.

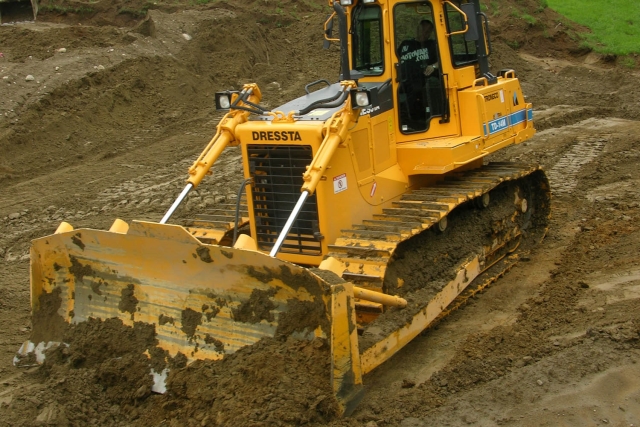

Standard Semi-U Blade design combines the penetration ability of a straight blade with the increased capacity provided by short wings. It is used for heavy duty applications such as mining and road construction.
6-way blade allows the operator to make immediate compensations for sloping terrain, type of work being done and type of material being dozed.
Adjustable parallelogram multi-shank ripper offers excellent 660 mm (26”) penetration in extremely tough materials and can be used with up to 3 shanks adjusted to two vertical positions.
A proven design multiple pump system & high capacity hydraulic reservoir for improved cooling. Hose & tube routings are accessible and yet well protected to prevent accidental damage. Trimble ready option is available on factory build orders.
Two-speed steering module on Dressta dozers maintains power to both tracks – at all times. You get the benefit of vastly improved traction to push loads effortlessly through turns, quickly and smoothly.
Engine 120 kW
Weight Range 15.5 t - 17.6 t
Blade Capacity Range 3.2 - 4.28 m3
Ground Pressure 31.4 kPa
