ARION 410-430

A medium-sized tractor designed to meet all your day-to-day requirements which is comfortable, reliable, economical to run and easy to use.

Max Engine Power 130hp

Engine Type4 cylinder, 4.5 L, 8 valve

More Specs

Sales Enquiry Parts


Whatever your application, the CLAAS ARION 400 tractor can be recommended for every task and every driver. Maximum output from 90-130 hp, the ARION 400 offers a wide range of applications in a compact format – for mowing, baling, ploughing, spraying, and in front-loader or transport work.

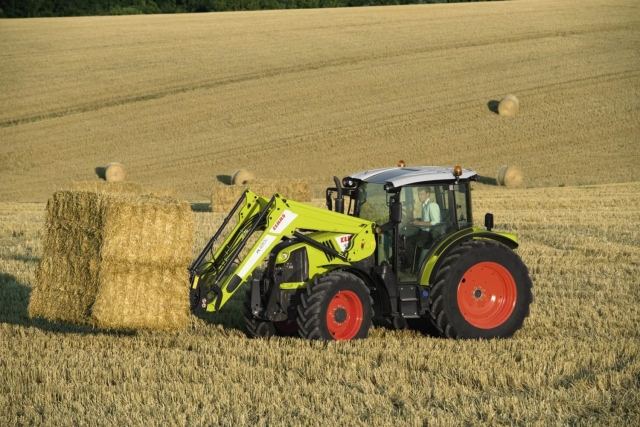

Negotiating low barn entrances, shifting straw bales, pulling and lifting heavy tillage machinery – the ARION 400 demonstrates the full efficacy of its compact and intelligent design.

A long wheelbase and ideal weight distribution bring excellent stability. The short overall length contribute to good manoeuvrability, visibility and guidance of front attachment devices.

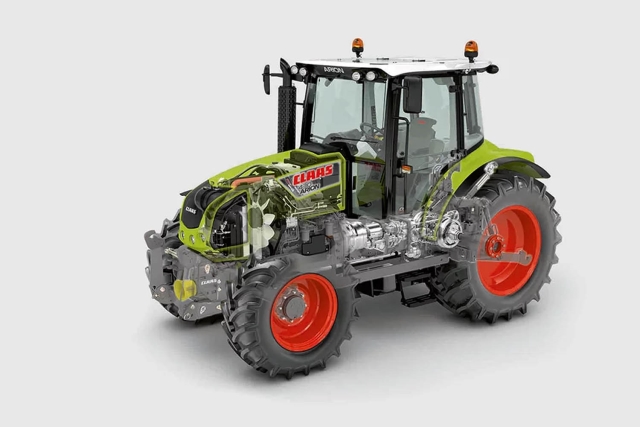

Power when you need it

The sophisticated engine technology employed in CLAAS ARION 400 tractors guarantee top performance. The engine is particularly good at developing its full potential in difficult conditions and never lets you down.
-Output from 95 to 130 hp
-Complies with emission standard
-Tier 3 Common rail technology Internal exhaust gas re-circulation
-Turbocharger with intercooler CPM CLAAS POWER MANAGEMENT

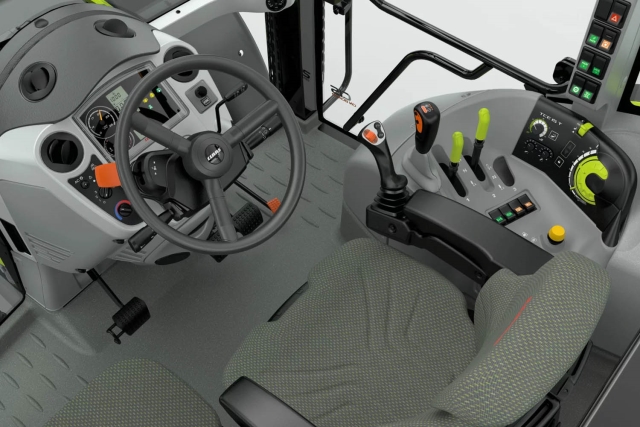

Full and intuitive control

The ARION 400 is characterised by its intuitive and simple operation. The clearly laid-out instrument panel provides all the necessary information at a glance.
The QUADRISHIFT transmission is operated effortlessly – access 16 gears at the push of a button. You can also switch between all four ranges and powershift speeds via a toggle switch on the joystick.

Greater comfort means greater efficiency

The ARION 400 tractors offer drivers a working environment where they can keep a cool head throughout long and demanding working days. The cab concept and integrated systems help you to focus on your work and remain relaxed for better results:
-Multifunction control lever with transmission control and FLEXPILOT or ELECTROPILOT function
-Powerful Air conditioning system as standard
-Swivelling driver's seat with air suspension and 4-point cab suspension (430)
-TCE 15 T electronic rear linkage control system with vibration damping and external controls on the mudguards
-Low, narrow bonnet for a good view of the front loader & linkage


Max Torque (Nm): 420 - 510
