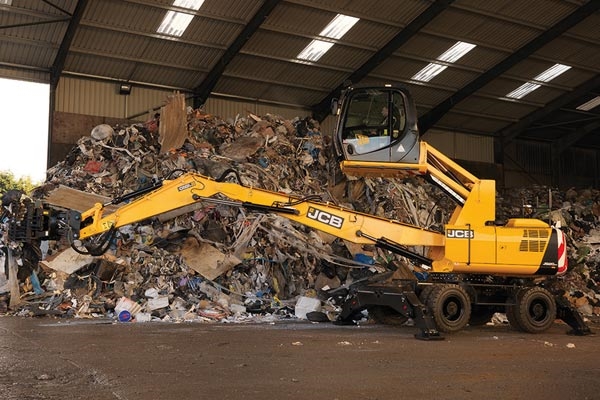

JS20MH Wheeled Excavator

The JCB JS20MH wheeled material handler is designed to provide maximum productivity and maximum safety first and foremost. To maximise productivity, the JS20MH produces its peak power and torque at low revs and, to extend uptime, there are countless durability and maintenance-saving features. This wheeled material handler also provides a comfortable and therefore productive operator environment.

Max Engine Power 93KW

Max. Operating Weight20720kg


Sales Enquiry Parts

Overview

To make sure the JS20MH, its operator and your site are protected, this machine is equipped with a range of standard safeguards, and there's an equally impressive list of optional safety extras too.

MAXIMUM PRODUCTIVITY MINIMUM SPEND

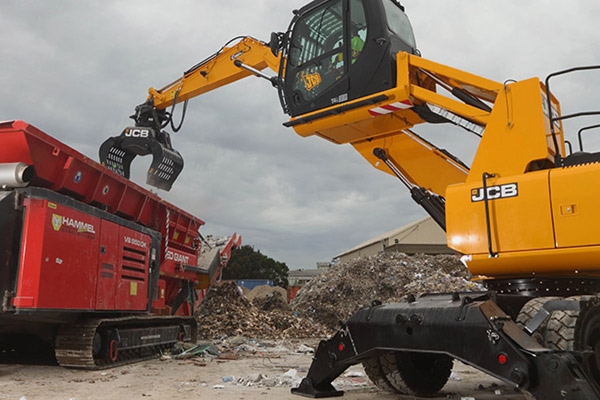

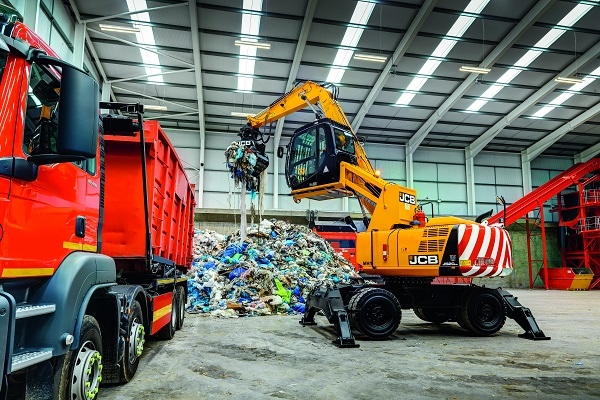

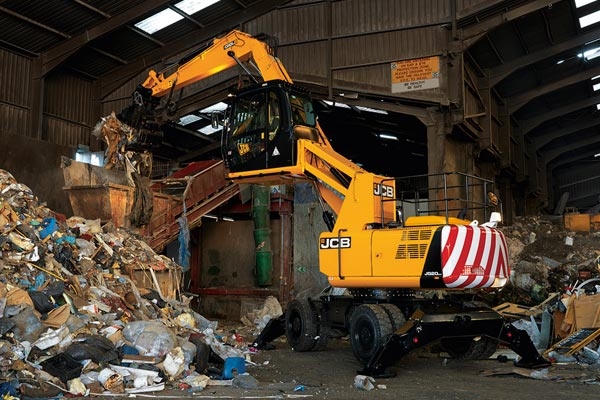

The JS20MH's cab can be hydraulically elevated by 2.1m, making it perfect for loading high-sided containers. The extra visibility makes for minimised damage, maximised productivity and improved safety.

The 97kW JCB Dieselmax T3-compliant motor produces high levels of torque at low engine speeds for fuel-efficient transmission and hydraulic matching. For further savings, JCB auto-idle technology reduces engine speed when the hydraulics aren't in use.

To maximise fuel efficiency, the JS20MH wheeled material handler benefits from advanced hydraulic technology, including optimised hydraulic pump settings, advanced spool design, and cutting edge electronic management software.

OPTIONAL EXTRA SECURITY

Optional travel alarms and extra flashing beacons improve on-site safety for both operators and bystanders; a side-view camera provides visibility to the right-hand side; and wheel chocks prevent the JS20MH wheeled material handler from moving accidentally.

Our optional safety rails protect operators carrying out maintenance on the upper structure of the JS20MH. The additional cab air filtration system, meanwhile, guards against noxious or contaminated atmospheres

Optional screen and roof guards on a JS20MH protect from impact damage, and fitting both sets provides complete Level 2 FOPS protection. Alternatively, a mesh front screen guard can keep out flying debris.

STRENGTH INSIDE AND OUT

To ensure ultimate reliability, the JS20MH wheeled material handler incorporates only the very best components in the industry “ that includes a JCB engine, Kawasaki pumps, and ZF axles and transmission.

The boom and dipper on a JS20MH are made from high tensile steel, with single-piece wrapper plates and internal reinforcing baffles for long life and durability.

Front and rear stabilisers are fully welded, offering maximum rigidity and stability. We also weld the JS20MH's central turret to both upper and lower undercarriage frames for maximum strength.

A high-strength rigid upper frame provides maximum durability and support, while a closed box section revolving frame increases strength, reduces stress and is highly resistant to impact damage “ essential on a wheeled material handler.

Access doors on the JS20MH are designed to be strong, rigid and durable. We've also fitted substantial steel guards to the front and rear light clusters, as well as the working lights.

We use Finite Element Analysis with extensive rig and endurance testing to make sure that the JS20MH wheeled material handler's key components last longer.

LESS SERVICING MORE SERVICE

The engine radiator, intercooler and hydraulic oil cooler are all mounted side-by-side on this wheeled material handler, making it easy to service and clean them.

For added serviceability, there's an easily-accessible Turbo 2 engine pre-cleaner on the JS20MH, as well as an easy-to-clean engine air filter.
