TM320S Telemaster

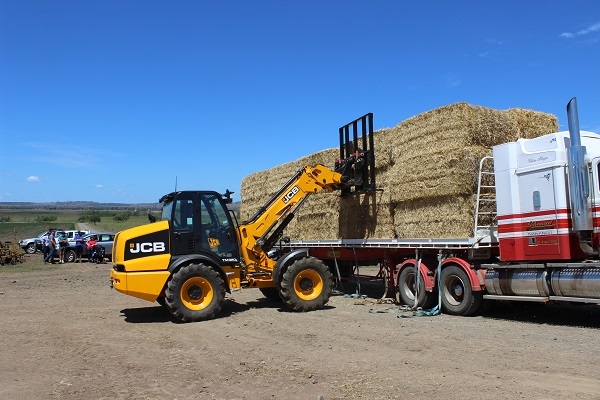

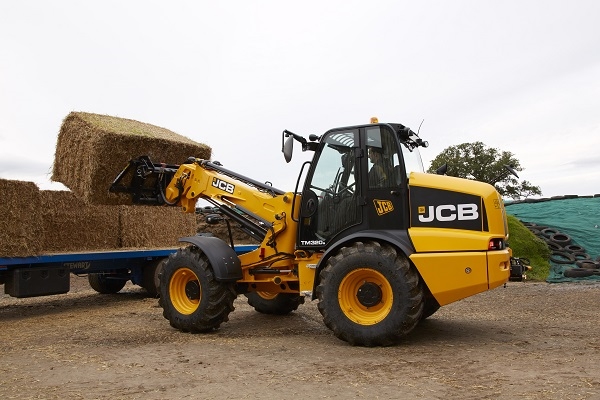

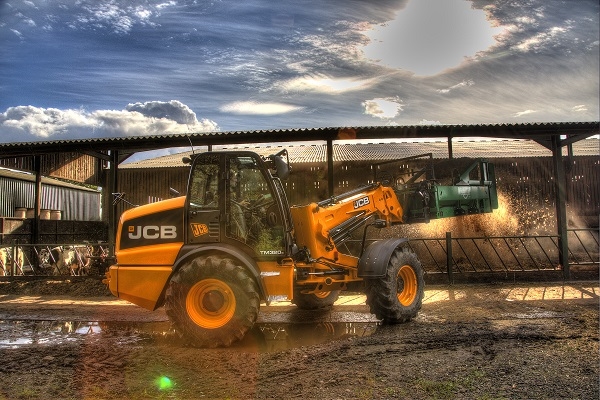

With articulated steering, telescopic reach and a huge range of attachments, the JCB TM320S Telemaster is a supremely productive machine. In short, the TM320S Telemaster combines the features of a wheel loading shovel with the benefits of a telescopic boom to give great versatility.

Max Engine Power 108KW

Max. Lift Capacity3200kg

Max. Lift Height5.2m


Sales Enquiry Parts

Overview

It's powered by a 108kW super-efficient JCB EcoMAX engine with high torque at low revs for reduced fuel consumption. The TM320S Telemaster also features a ±10° oscillating centre joint and permanent four-wheel drive for great performance in any conditions. A Z-bar linkage makes for huge tearout force and attachment crowd power.

A 6-speed JCB Powershift transmission with TorqueLock and class-leading powertrain components deliver high efficiency and productivity.

All of this adds up to a forward reach of 3 m, a lift capacity of 3.2 tonnes and a lift height of 5.2 m.

PERFORMANCE

We've designed the JCB TM320S Telemaster telescopic wheel loader to be supremely productive. With a 160 l/min Variflo hydraulic system and proportional control of auxiliary services the TM320S Telemaster can work seriously hard.

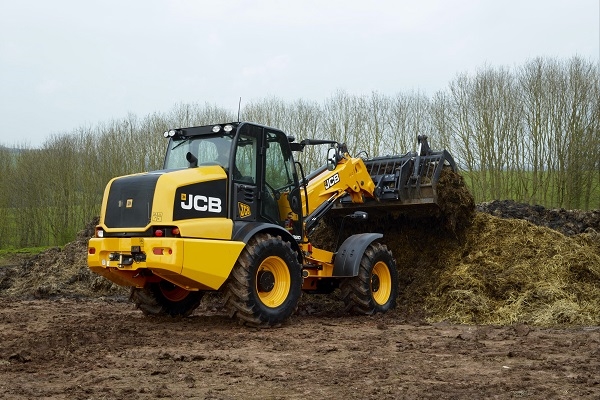

The 108 kW EcoMAX engine is highly efficient, producing its power and torque at low revs to maximise fuel economy. Add to that the six-speed powershift transmission with TorqueLock in gears 2 to 6, servo controls and the permanent 4WD, and climbing silage clamps or digging into compacted yard manure just got a whole lot easier.

OPERATING COMFORT

We've designed the JCB TM320S Telemaster to maximise productivity by being comfortable, easy to operate, safe and easy to service.

Controls are intuitive to use and ergonomically positioned inside a spacious cab with luxury fully adjustable seating and standard air conditioning. There's great ventilation, plenty of storage space and inclined front steps with well positioned grab handles for safe, easy access.

There's also superb all-round visibility, courtesy of a central seat, a one-piece windscreen, a low boom pivot, and narrow pillars.
