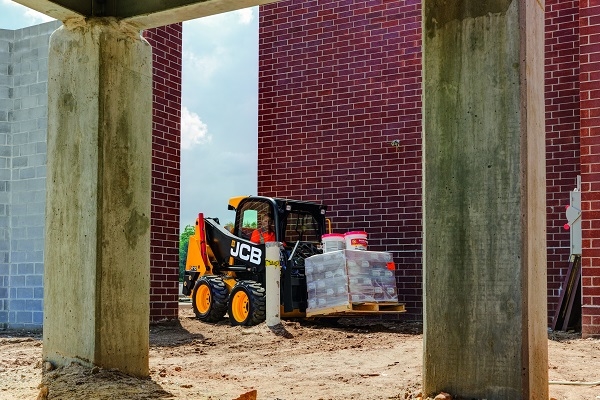

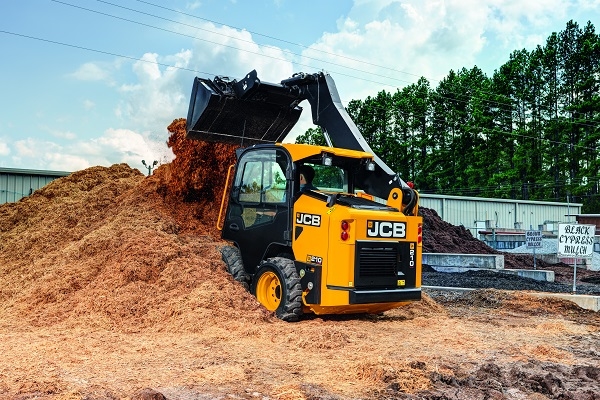

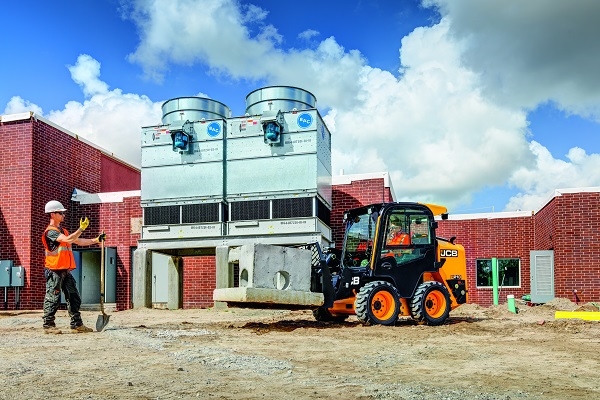

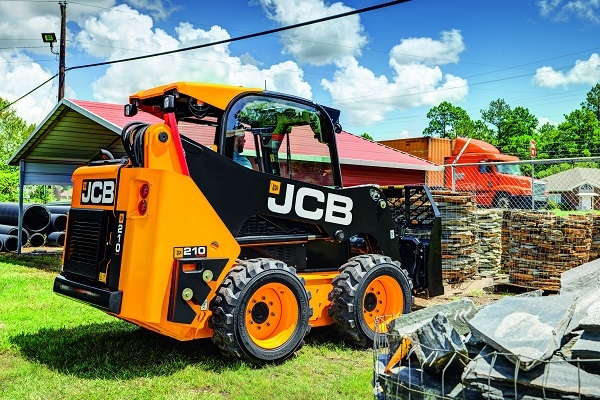

The small platform 959kg rated operating capacity JCB 210 radial lift skid steer loader is a new addition to our range. It is a small wheeled machine with the power of a larger model.
Max Engine Power 55KW
Lift PathRadial
Max. Operating Weight3123kg
Operating Capacity959kg
A higher flow rate capability makes it ideal for versatile ground working using a variety of power hungry attachments.
With plenty of power and versatile features, JCB sets new standards for efficiency and productivity in skid steer loaders.
Unlike conventional skid steer cooling systems, JCB's pulls cool, clean air from above and forces hot air out through the sides and rear, away from the operator.
All JCB machines feature an industry standard quick hitch for quick coupling to all JCB attachments and all other brands.
The standard hydraulic circuit on JCB small platform machines it is 70 lpm. A high-flow option up to up to 115 lpm is available for maximum attachment versatility.
Optional parallel lift makes it easier to position loads with forks or attachments on all JCB models.
JCB's Smoothride System (SRS) option allows the boom and load to move independently from the chassis, for improved load retention, operator comfort and faster loading cycles.
With easy side-door entry, the largest cabs on the market, electric controls and adjustable joystick controls, JCB skid steer loaders offer unrivalled comfort for maximum productivity.
On small platform machines, JCB cabs are 46% larger than the competition.
JCB's myCHOICE control software allows operators to tailor the sensitivity of joystick movement to match the way they work.
ISO or H-pattern controls are available to suit operator preferences. ISO (single joystick transmission operation) comes as standard but the H Pattern option can be added.
The radio features an AUX port that is compatible with mobile phones and other devices.
JCB has earned its reputation for strong design, and JCB skid steers are built tough to handle the demands of any application and any condition.
Fully-welded chassis provides a rigid structure for maximum strength and reduced weight. A solid undercarriage with cast steel, triple-flanged rollers provides consistent performance on demanding terrain.
The unique JCB single-arm Powerboom„¢ boasts tapered pivot pins and 20% more steel than conventional twin-arm skid steer designs for greater rigidity with less wear and improved retention of material in the bucket.
The Powerboom„¢ provides safe internal routing for hydraulic hoses, for maximum protection from impact and other damage.
The quick hitch has high-tensile steel and high-strength welds for longer life.
For extra support and greater breakout force, JCB skid steers have the largest quick hitch pivot pins in the industry.
JCB skid steer loaders are low-maintenance and easy to service, making them affordable, efficient and highly productive.
All daily checks can be performed at ground level. Pre-filters, oil and air filters are easy to access via a large, recessed, rear service door.
JCB's tilting cabs can be operated by one person and opened in just a few minutes, to provide access for more detailed maintenance.
O-ring face seal hydraulic fittings reduce leaks and maintenance downtime.
For a quick clean out with a power washer, the engine bay is extremely accessible. The machines also feature flat floors with no foot wells for speedy turnaround times.
