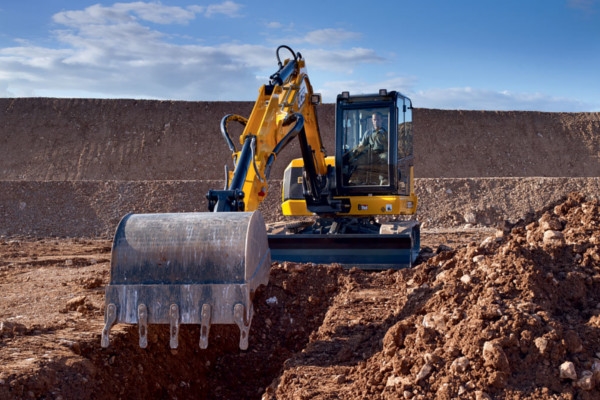

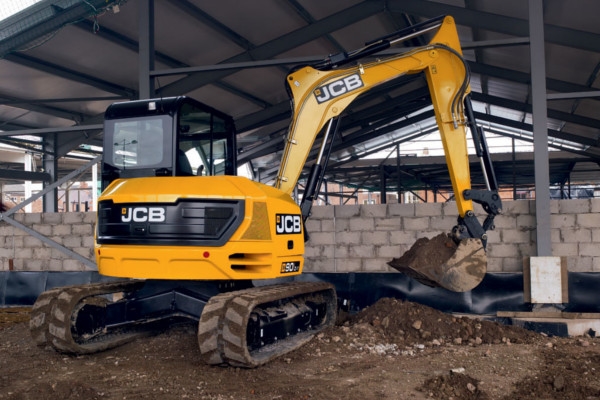

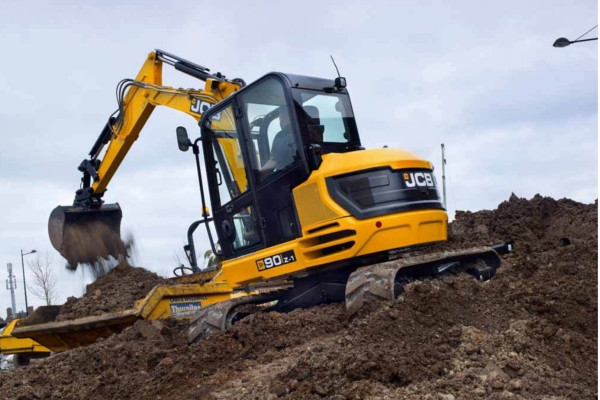

The new generation JCB 90Z is quite simply one of the toughest excavator that we've ever built. It also boasts unsurpassed levels of power, versatility and productivity throughout.
Dig Depth4.13m
Max. Dump Height5.32m
Max. Operating Weight9203kg
What's more, because a low cost of ownership will be foremost on your mind, these diggers are designed to keep running costs affordable and uptime maximised via a combination of supreme operator comfort, stringent safety measures and easy, cost-effective serviceability.
In short, we've used our 50-year expertise to create machines that meet your exact demands.
Greasing intervals at the dozer and dig ends are a best-in-class 500 hours on these excavators, which saves you time and money. This is made possible because we use graphite impregnated bronze bushes.
For reduced fuel spillage and increased safety,the JCB 90Z small excavator is equipped with a refueling pump that has an auto stop function so you can perform other functions while the machine is being refueled.
Key components like the rotary joint, swing cylinder, removable side skirts and in-fill panel are all easily accessed via the tilting cab. Tapered dozer lift points behind the blade edge makes it relatively easy to lift your digger for transporting.
Excellent SAE service rating on the market equates to greater uptime for the JCB 90Z mini excavators. Our machines are more serviceable courtesy of features like a gas-strutted 30-degree tilting cab that's operable without special tools.
There are colour-coded hydraulic hoses to make identification simple on these JCB excavators. Hoses from the dozer all terminate at the bulkhead, which means that replacing them is easy.
Straightforward cleaning inside and out is assured on a 90Z small digger; the sealed idler tension unit and open frame undercarriage design with sloping track legs prevent material build-up, while the two-piece floor mat is easily removable.
A simplified H-frame construction and finite element analysis have helped us to create the ultimate heavy-duty mini excavator structure. The JCB 90Z small digger therefore combines durability with confidence-inspiring stability.
With a heavy-duty boom cylinder guard, the JCB 90Z small excavators enjoy maximum excavator arm protection, even during the toughest jobs.
To help these JCB minis perform anywhere, they're equipped with high quality 450mm steel tracks. The plates are pre-drilled for rubber pads. There's also the choice of dedicated Road Liner Pads (Bridgestone GeoGrip).
At the heart of these new JCB 9-tonne diggers is a JCB Diesel by Kohler common rail Stage IIIB/Tier 4 Final-compliant engine that's fitted with a DOC, turbocharger and intercooler. Power has been increased to 55kW at 2000rpm, and the unit produces 305Nm of torque at 1500rpm.
You get class-leading tractive effort and tracking speed (4.6kph with a 90z) ensuring comprehensive dozer capabilities and swift travel times. To increase productivity and reduce operator fatigue, our auto kickdown motors will automatically adapt to terrain changes.
There's a huge 188° bucket rotation, which helps to provide great spoil retention during truck loading. The 90Z midi digger is equipped with the 2.1m dipper, it can be optioned with either a 1.65 or 2.25m dipper length from the plant.
Our small excavator boom is a two-piece unit that offers close reach, superb digging capacity and excellent dump reach.
Twin auxiliary lines with both high and low hydraulic flows are standard-fit on the 90Z small digger, allowing you to operate many versatility-enhancing attachments. Proportional electronic auxiliary line control with full adjustability means you can operate any attachment easily.
Fuel combustion in the 90Z small excavators' JCB Diesel by Kohler engine is so clean that the unit doesn't require a diesel particulate filter (DPF). This reduces servicing, increases uptime and improves fuel efficiency.
