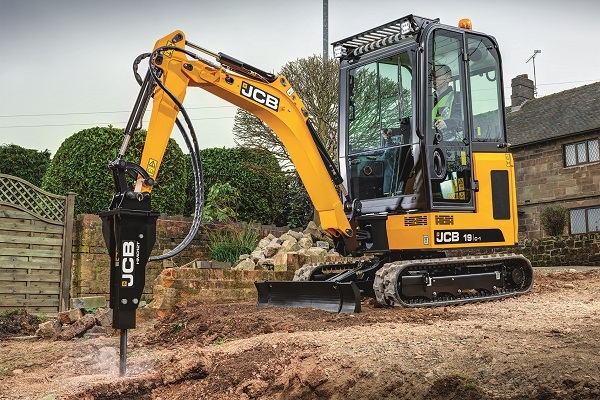

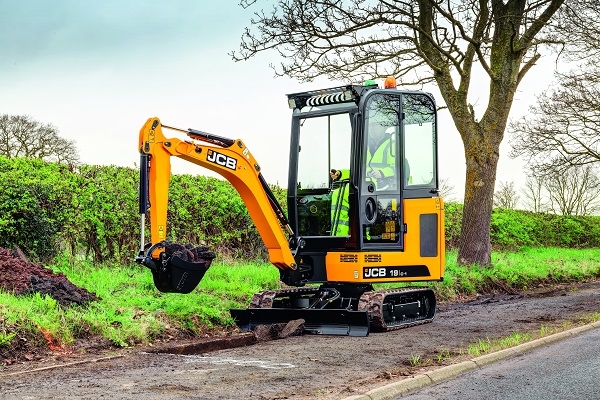

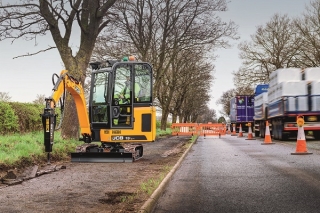

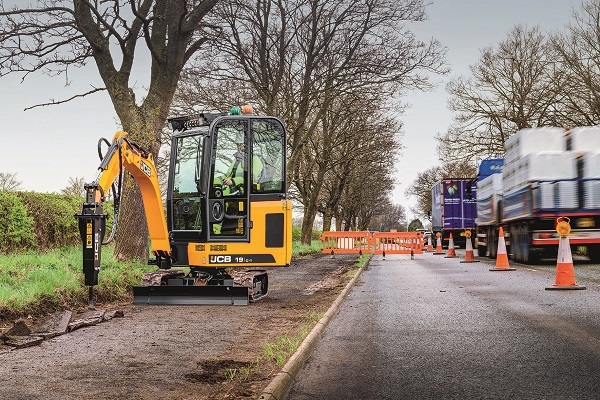

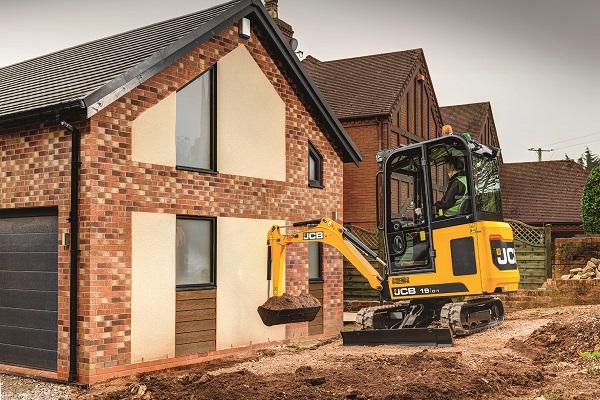

JCB's 19C - 1.8 tonne zero tail swing mini excavator is industry leading for durability, performance, balance, stability, low cost of ownership and safety. Conventional tail swing excavators provide exception reach, dig, shift and drop functions.
Dig Depth2.6m
Max. Dump Height2.6m
Max. Operating Weight1760kg
Strong and durable design underlines the excavator's DNA.
It starts with the 100% steel bodywork for maximum impact protection and ease of repair. Designed specifically with extra lift performance and balance in mind, all owners secure the advantage of JCB's vision to improve the products durability in the toughest industry segments.
Robust Steel panels can be quickly and easily repaired if required which is vitally important in a hire fleet with optimum usage rates.
Toughness is personified by the full width solid cast 103kg counterweight that provides maximum protection for the rear of the machine.
The heavy duty strong H frame undercarriage provides rigid support and an open design allowing spoil to fall readily through to the ground preventing excessive componentry wear and minimal cleaning time.
For ultimate rigidity, the extending (from 980-1,330mm) undercarriage beams are constructed from 25mm solid steel plate.
The high tensile four-plate boom and dipper design provide maximum strength and durability.
The 1,800mm main boom with top mounted lift ram provides maximum protection for the hydraulic cylinder components.
Tough œPower-Matched combination of engine, hydraulic and the conventional tail swing configurations give this machine the balanced dig-strong performance others find hard to match.
Working faster and smoother are obvious characteristics of the 19C mini excavator.
Its hydraulics give operators the capability to simultaneously multi-task any combination of excavator functions smoothly and with full power for unrivalled output that means less time to complete the job.
Straight-line tracking when using any other hydraulic functions contributes to increased productivity and safety.
Redesigned track levers now come with T-bar controls that allow the operator to manipulate the machine position quickly and smoothly using just one hand.
Sloping track legs is a JCB new generation DNA reduce material retention, making it easier and quicker to clean the excavator undercarriage between jobs.
New dozer geometry allows the blade to become free of material build up easier increasing productivity.
The dozer blade extensions can be swung out without using tools. They pivot past the respective tracks with plenty of clearance regardless of the blades above ground position.
Ten sturdy tie-down points have been built into the frames make the tie down process quicker and easier being easily adaptable to different truck and trailer tie down configurations. Safe and easy access to the tie down points means quicker turnaround times between sites.
Class leading balance for a conventional tail swing excavator.
The 19C's exceptional balance is mainly due to its conventional tail swing configuration that signs off at the rear with a full width rear cast counterweight, rear cross mounted engine and 4 post canopy.
Its all about physics. Tail swing equals optimum balance and stability especially when carrying or in a hard dig.
Spending less throughout the life of the 19C was another key design criteria kept from its predecessor, the 8018 mini excavator.
The 19C is supported with a 3 year / 3000 hour Premier Warranty package. Australian dealers offer full service benefits to owners through their experienced aftersales operations. This combination of support attributes, have proven to provide low whole of life costs and exceptional machine residual values delivering the most cost effective solution for mini excavator users worldwide.
