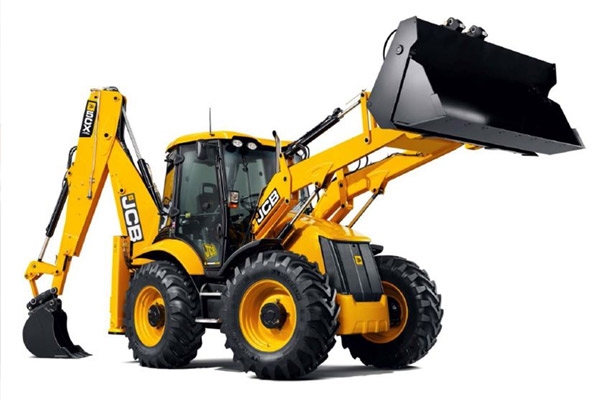

5CX Backhoe Loader

The 5CX backhoe is the flagship model of the JCB backhoe loader range, which is quite simply the most efficient in the world.  The JCB Backhoe range is the world's number one backhoe loader. JCB backhoes offer exceptional resale value based on global market acceptance.

Max Engine Power 74.2KW / 100hp

Dig Depth6.14m

Bucket Capacity1.3m3


Sales Enquiry Parts

Overview

Features include:

ROAD SPEEDS of up to 50km/h (Best in class).

EXCELLENT VISIBILITY

ERGONOMICALLY DESIGNED CONTROLS to minimise operator fatigue.

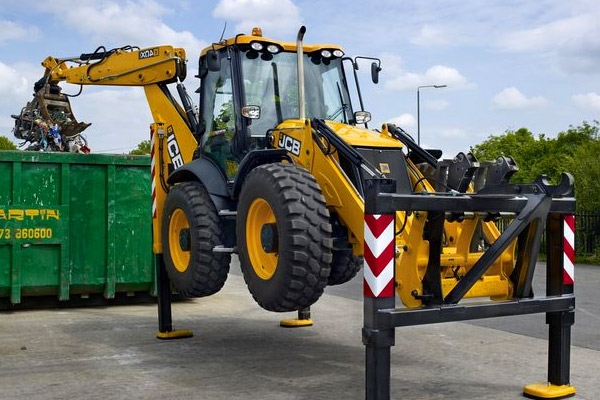

HYDRAULIC POWER SLIDE makes repositioning effortless, precise and safe. Repositioning is a must when compacting, picking and sorting.

EFFICENCT DESIGN PHILOSOPHY with class-leading efficiency and low running costs. Our 6 speed auto transmission combined with the lock-up torque convertor reduces fuel consumption by up to 25% when roading.

POWERFUL DIESEL MAX ENGINES produce high power and torque at low revs for great economy.

AVERAGE FUEL SAVINGS of up to 16%, plus lower emissions and noise levels with our EcoRoad, EcoDig and EcoLoad packages.

EXTENDED PERIOD BETWEEN FILL UPS you benefit from a longer, more productive working day.

ENGINE

The 5CX is fitted with the very fuel efficient JCB Diesel Max engine with very high torque delivery at very low RPM.

TRANSMISSION

The 5CX exclusively offers a 6 speed auto Powershift transmission with a patented lock up torque converter offering exceptional loader and roading characteristics and reduce fuel burn. The front and rear axles feature auto locking limited slip fitted as standard equipment offering exceptional tractability.

The Smooth Ride System (SRS) is fitted as standard equipment. The Smooth Ride System consists of a dry nitrogen and oil filled accumulator installed in line with the loader lift cylinders. When activated, the SRS allows the loader arms to float. This action counteracts variations in road or site surfaces and provides the operator with a smoother and more comfortable ride. The JCB SRS manually controlled, via a rocker switch on the instrument panel, for maximum benefit and user flexibility.

STEERING & BRAKING

The JCB class leading hydraulic power brakes system is fitted as standard and ensures low effort, effective, fade-free braking and the deletion of the master cylinder eliminating the requirement to service and maintain. The self-adjusting, multi-disc arrangement is inboard mounted and is oil immersed for minimum maintenance and a long operating life.

The 5CX has full power hydrostatic steering system utilising the main hydraulic pump via a steering priority valve. In the event of engine failure, emergency steering is maintained. Four equal size wheels with three steering modes which can be activated on the run including front wheel steering, four wheel steering and crab steer. Steer modes can be selected via the three-position rotary switch on the front dashboard.

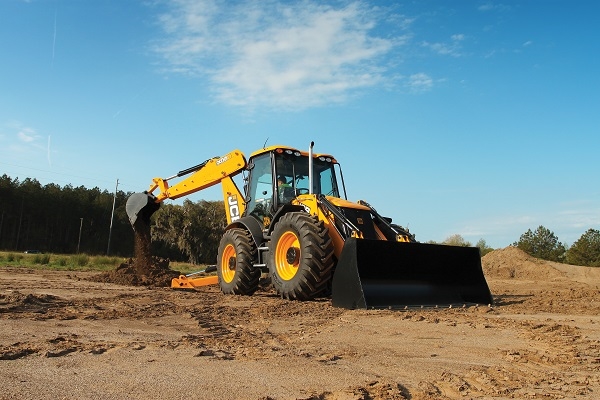

EXCAVATOR

The 5CX has a max dig depth of 6.14m. It also offers Hydraulic side shift which JCB pioneered the introduction of in 1999. The JCB system exclusively offers sacrificial wear pads between the king post and slide rails. Furthermore the hydraulic ram mechanism is located behind the kingpost and does not obstruct the operators view.
