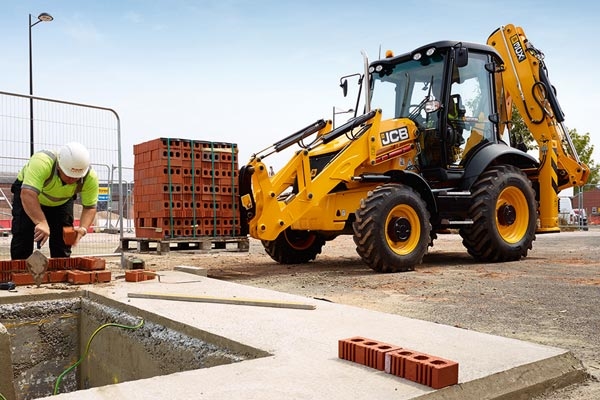

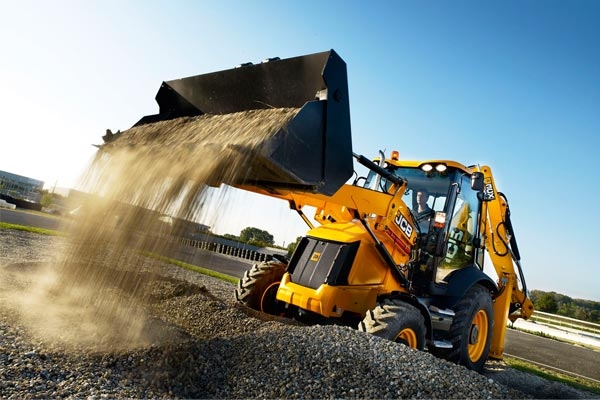

The JCB Backhoe range is the world's number one backhoe loader. JCB backhoes offer exceptional resale value based on market acceptance
Max Engine Power 74.2KW / 100hp
Dig Depth5.46m
Bucket Capacity1.2m3
Features include:
ROAD SPEEDS of up to 50km/h (Best in class).
EXCELLENT VISIBILITY (and safety) is provided by the extra-large tinted glass areas of 6.4m2.
ERGONOMICALLY DESIGNED CONTROLS to minimise operator fatigue.
HYDRAULIC POWER SLIDE enables the excavator's sideshift carriage to be hydraulically powered across the rear frame by the operation of a pedal or joystick-mounted proportional switch (EasyControl and Advanced EasyControl) in the cab.
EFFICENCT DESIGN PHILOSOPHY with class-leading efficiency and low running costs.
POWERFUL DIESEL MAX ENGINES from 68kw to 81kw.
AVERAGE FUEL SAVINGS of up to 16%, plus lower emissions and noise levels.
EXTENDED PERIOD BETWEEN FILL UPS you benefit from a longer, more productive working day.
The JCB 3CX Elite offers exclusively the EcoMax JCB Tier 4 interim engine configuration that has been widely acclaimed for a dramatic reduction in greenhouse gas emissions and particulates. Also we have empirical evidence from the JCB LiveLink telemetry system that this model in many applications is averaging under 6 litres of fuel per hour which offers an extraordinary cost saving over the life of the machine that simple cannot be rivalled by any competitors. To prevent any movement from the Loader or backhoe the hydraulic controls are neutralised and cannot be activated with the engine started until the operator has acknowledge the functions.

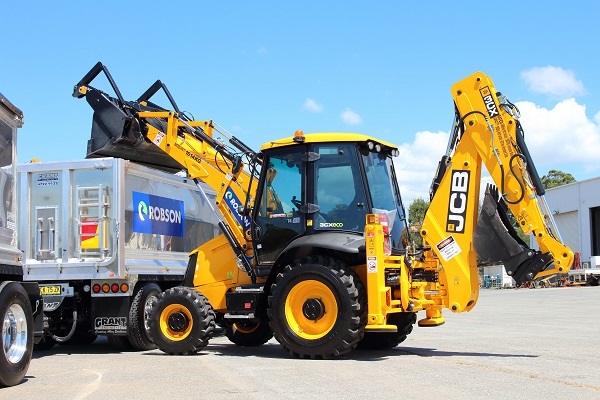

The JCB 3CX Backhoe has a one piece chassis from front to rear with a one piece bonnet that makes daily servicing an easy task.
The 3CX Classic features a 4 speed Powershift transmission with selectable 4wd. The 3CX Elite features class leading 6 speed auto Powershift transmission with torque lock for unrivalled road doing performance with high road speed capability.The 3CX Backhoe has a standard auto locking limited slip diff, which detects wheel slip without the requirement for operator engagement. Furthermore in the event of a quick deviation being required when the axle is locked simply turning the steering wheel will automatically disengage diff lock.
The Hydraulic system is a closed centre variable displacement pump with a max flow of 165lpm. The Auxiliary hydraulic lines are a standard factory fit for bidirectional and single directional flow. All of these can be activated from the left hand joystick. The exclusive in seat pilot controls can be easily isolated by a 3 way switch with visual alerts indicating whether the hydraulic system is activated or isolated. To protect all the hydraulic lines JCB have run the lines internally on the boom and dipper to reduce damage (except the auxiliary lines).

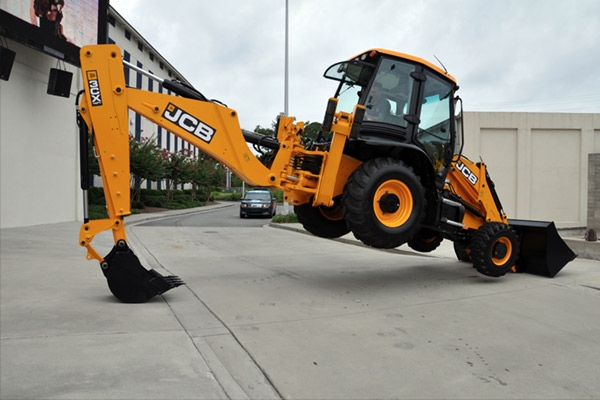

The JCB Backhoe has some fascinating backhoe features including a 5.46m dig depth, auto boom lock and factory engineered Hydraulic sideshift actuation which JCB pioneered back in 1999. JCB's Power slide Hydraulic Side Shift is a feature that is factory fitted. The hydraulic cylinder and ancillary plumbing are all placed behind the kingpost not above the slide rails. JCB are the only manufacturer that fit sacrificial wear pads between the kingpost and the slide rail for increasing the life of the slide rail.
