TM Series

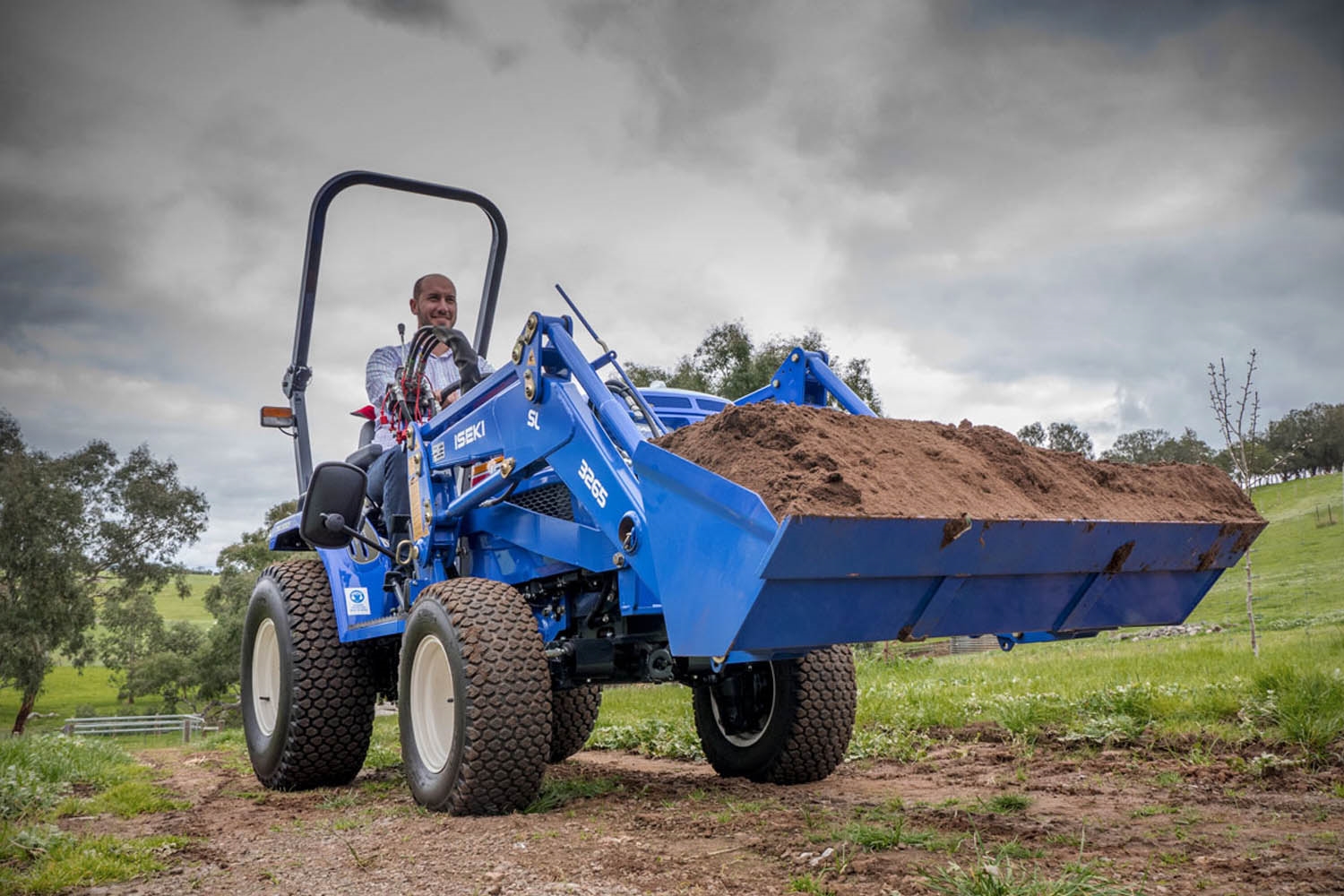

The goal of Iseki TM Series compact tractors is to provide the ultimate compact utility tractor. All controls are in the right place – at the operator’s fingertips.

Max Engine Power 18.9KW / 26hp

Max. Lift Capacity600kg

Displacement Cyl1123cc/3 - 1498cc/3


Sales Enquiry Parts

Overview

The TM Series compact tractors are also available with a selection of options that make it the perfect versatile addition to your property or agricultural operations.

The PTO features a two speed modulation button for slower engagement of rear implements or a mid mounted mower deck that reduces implement shock and operator fatigue. Long hours at work are made more comfortable by an insulated operator’s platform that absorbs vibrations and a suspension seat to smooth rough terrain.

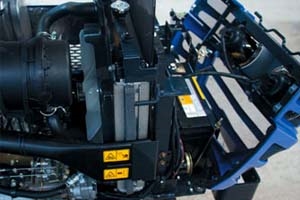

3 Cylinder Engines

-Quiet and efficient
-Full power at low revs
-Easy maintenance access

Operator’s Platform

-Rubber mounts isolate vibration
-Ergonomically located controls

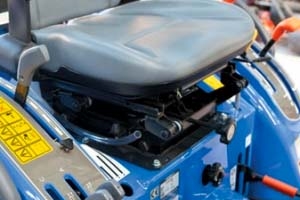

-Comfortable suspension seat

Hydrostatic Transmission

-Three range transmission

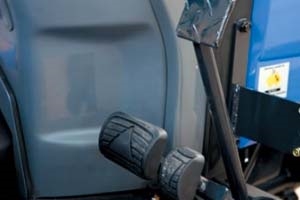

-Dual forward/reverse pedals
-4WD & diff lock

Hydraulics & Linkage

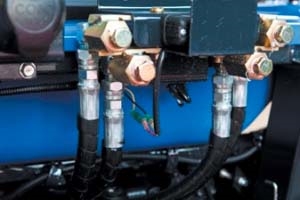

-Two double acting auxiliary fender mounted hydraulic outlets
-33l/m flow for easy loader work
-Three point linkage with a 600kg lift capacity


Downloads


Models Available

ModelDisplacement/CylRated Power Kw/HP Lift Capacity (Kg)
TM3245 1123cc/3 16.8/22.5 600
TM3265 1498cc/3 18.9/25.7 600
